Product Description

Tapered roller bearings are a key type of rolling bearing. Their unique structural design has led to their widespread application in mechanical transmission. They primarily consist of an inner ring, an outer ring, tapered rollers, and a cage. The rollers are conical, and the raceways of the inner and outer rings also feature conical surfaces. This structure enables them to withstand both radial and axial loads. In particular, they can effectively handle bidirectional axial forces while supporting large radial loads, a significant advantage over many other bearing types.

Bearing Designation	Dimension(mm)			Dimension(mm)				Weight
Bearing Designation	d	D	T	B	C	r(min)	r1(min)	Weight
30202	15	35	11.75	11	10	0.6	0.6	0.053
30203	17	40	13.25	12	11	1	1	0.081
30303	17	47	15.25	14	12	1	1	0.133
32303	17	47	20.25	19	16	1	1	0.176
32004X	20	42	15	15	12	10.6	0.6	0.102
30204	20	47	15.25	14	12	1	1	0.127
30304	20	52	16.25	16	13	1.5	1.5	0.179
32304	20	52	22.25	21	18	1.5	1.5	244
32005X	25	47	15	15	11.5	0.6	0.6	0.118
30205	25	52	16.25	15	13	1	1	0.155
32205	25	52	19.25	18	16	1	1	0.188
33205	25	52	22	22	18	1	1	0.225
32305	25	62	25.25	24	20	1.5	1.5	0.386
30305	25	62	18.25	17	15	1.5	1.5	0.273
32305	25	62	25.25	24	20	1.5	1.5	0.386
32006X	30	55	17	17	13	1	1	0.177
30206	30	62	17.25	16	14	1	1	0.236
32206	30	62	21.25	20	17	1	1	0.292
33206	30	62	25	25	19.5	1	1	0.359
30306	30	72	20.75	19	16	1.5	1.5	0.411
32306	30	72	28.75	27	23	1.5	1.5	0.588
320/28X	32	52	16	16	12	1	1	0.15
320/32AX	32	58	17	17	13	3.6	1	0.19
320/32X	32	58	17	17	13	1	1	0.19
32007X	35	62	18	18	14	1	1	0.231
30207	35	72	18.25	17	15	1.5	1.5	0.344
32207	35	72	24.25	23	19	1.5	1.5	0.551
33207	35	72	28	28	22	1.5	1.5	0.551
30307	35	80	22.75	21	18	2	1.5	0.527
32307	35	80	32.75	31	25	2	1.5	0.776
31307	35	80	22.75	21	15	2	1.5	0.518
32008X	40	68	19	19	14.5	1	1	0.282
30208	40	80	19.75	18	16	1.5	1.5	0.434
32208	40	80	24.75	23	19	1.5	1.5	0.554
33208	40	80	32	32	25	1.5	1.5	0.758
30308	40	90	25.25	23	20	2	1.5	0.757
32308	40	90	35.25	33	27	2	1.5	1.06
32009X	45	75	20	20	15.5	1	1	0.354
33109	45	80	36	26	20.5	1.5	1.5	0.563
30209	45	85	20.75	19	16	1.5	1.5	0.502
32209	45	85	24.75	23	19	1.5	1.5	0.597
33209	45	85	32	32	25	1.5	1.5	0.818
30309	45	100	27.25	25	22	2	1.5	1.01
32309	45	100	38.25	39	30	2	1.5	1.43

Bearing Designation	Dimension(mm)			Dimension(mm)				Weight
Bearing Designation	d	D	T	B	C	r(min)	r1(min)	Weight
32010X	50	80	20	20	15.5	1	1	0.389
33110	50	85	26	26	20	1.5	1.5	0.594
30210	50	90	21.75	20	17	1.5	1.5	0.566
32210	50	90	24.75	23	19	1.5	1.5	0.643
33210	50	90	32	32	24.5	1.5	1.5	0.887
30310	50	110	29.25	27	23	2.5	2	1.32
32310	50	110	42.25	40	33	2.5	2	1.89
32011×	55	90	23	23	17.5	1.5	1.5	0.569
33011	55	90	27	27	21	1.5	1.5	0.672
33111	55	95	30	30	23	1.5	1.5	0.868
30211	55	100	22.75	21	18	2	1.5	0.732
32211	55	100	26.75	25	21	2	1.5	1.18
33211	55	100	35	35	27	2	1.5	1.18
30311	55	120	31.5	29	25	2.5	2	1.65
32311	55	120	45.5	43	35	2.5	2	2.38
32012X	60	95	23	23	17.5	1.5	1.5	0.621
30212	60	110	23.75	22	19	2	1.5	0.945
32212	60	110	29.75	28	24	2	1.5	1.19
30312	60	130	33.5	31	26	3	2.5	2.08
32312	60	130	48.5	46	37	3	2.5	2.99
32013X	65	100	23	23	17.5	1.5	1.5	0.664
33113	65	110	34	34	26.5	1.5	1.5	1.33
30213	65	120	24.75	23	20	2	1.5	1.18
32213	65	120	32.75	31	27	2	1.5	1.58
33213	65	120	41	41	32	2	1.5	2.02
30313	65	140	36	33	28	3	2.5	2.56
32313	65	140	51	48	39	3	2.5	3.64
32014X	70	110	25	25	19	1.5	1.5	0.884
33014	70	110	31	31	25.5	1.5	1.5	1.09
30214	70	125	26.25	24	21	2	1.5	1.32
32214	70	125	33.25	31	27	2	1.5	1.71
30314	70	150	38	35	30	3	2.5	3.08
32314	70	150	54	51	42	3	2.5	4.5
32015X	75	115	25	25	19	1.5	1.5	0.93
33015	75	115	31	31	25.5	1.5	1.5	1.16
33115	75	125	37	37	29	2	1.5	1.84
30215	75	130	27.25	25	22	2	1.5	1.42
32215	75	130	33.25	31	27	2	1.5	1.77
33215	75	130	41	41	31	2	1.5	2.26
30315	75	160	40	37	31	3	2.5	3.65
32315	75	160	58	55	45	3	2.5	5.41
32016X	80	125	29	29	22	1.5	1.2	1.32
33116	80	130	37	37	29	2	1.2	1.93
30216	80	140	28.25	26	22	2.5	2	1.72
32216	80	140	35.25	33	28	2.5	2	2.17
33216	80	140	46	46	35	2.5	2	2.99
30316	80	170	42.5	39	33	3	2.5	4.46
32316	80	170	61.5	58	48	3	2.5	6.31
32017X	85	130	29	29	22	1.5	1.5	1.38
33017	85	130	36	36	29.5	1.5	1.5	1.72
33117	85	140	41	41	32	2.5	2	2.43

Bearing Designation	Dimension(mm)			Dimension(mm)				Weight
Bearing Designation	d	D	T	B	C	r(min)	r1(min)	Weight
32010X	50	80	20	20	15.5	1	1	0.389
33110	50	85	26	26	20	1.5	1.5	0.594
30210	50	90	21.75	20	17	1.5	1.5	0.566
32210	50	90	24.75	23	19	1.5	1.5	0.643
33210	50	90	32	32	24.5	1.5	1.5	0.887
30310	50	110	29.25	27	23	2.5	2	1.32
32310	50	110	42.25	40	33	2.5	2	1.89
32011×	55	90	23	23	17.5	1.5	1.5	0.569
33011	55	90	27	27	21	1.5	1.5	0.672
33111	55	95	30	30	23	1.5	1.5	0.868
30211	55	100	22.75	21	18	2	1.5	0.732
32211	55	100	26.75	25	21	2	1.5	1.18
33211	55	100	35	35	27	2	1.5	1.18
30311	55	120	31.5	29	25	2.5	2	1.65
32311	55	120	45.5	43	35	2.5	2	2.38
32012X	60	95	23	23	17.5	1.5	1.5	0.621
30212	60	110	23.75	22	19	2	1.5	0.945
32212	60	110	29.75	28	24	2	1.5	1.19
30312	60	130	33.5	31	26	3	2.5	2.08
32312	60	130	48.5	46	37	3	2.5	2.99
32013X	65	100	23	23	17.5	1.5	1.5	0.664
33113	65	110	34	34	26.5	1.5	1.5	1.33
30213	65	120	24.75	23	20	2	1.5	1.18
32213	65	120	32.75	31	27	2	1.5	1.58
33213	65	120	41	41	32	2	1.5	2.02
30313	65	140	36	33	28	3	2.5	2.56
32313	65	140	51	48	39	3	2.5	3.64
32014X	70	110	25	25	19	1.5	1.5	0.884
33014	70	110	31	31	25.5	1.5	1.5	1.09
30214	70	125	26.25	24	21	2	1.5	1.32
32214	70	125	33.25	31	27	2	1.5	1.71
30314	70	150	38	35	30	3	2.5	3.08
32314	70	150	54	51	42	3	2.5	4.5
32015X	75	115	25	25	19	1.5	1.5	0.93
33015	75	115	31	31	25.5	1.5	1.5	1.16
33115	75	125	37	37	29	2	1.5	1.84
30215	75	130	27.25	25	22	2	1.5	1.42
32215	75	130	33.25	31	27	2	1.5	1.77
33215	75	130	41	41	31	2	1.5	2.26
30315	75	160	40	37	31	3	2.5	3.65
32315	75	160	58	55	45	3	2.5	5.41
32016X	80	125	29	29	22	1.5	1.2	1.32
33116	80	130	37	37	29	2	1.2	1.93
30216	80	140	28.25	26	22	2.5	2	1.72
32216	80	140	35.25	33	28	2.5	2	2.17
33216	80	140	46	46	35	2.5	2	2.99
30316	80	170	42.5	39	33	3	2.5	4.46
32316	80	170	61.5	58	48	3	2.5	6.31
32017X	85	130	29	29	22	1.5	1.5	1.38
33017	85	130	36	36	29.5	1.5	1.5	1.72
33117	85	140	41	41	32	2.5	2	2.43

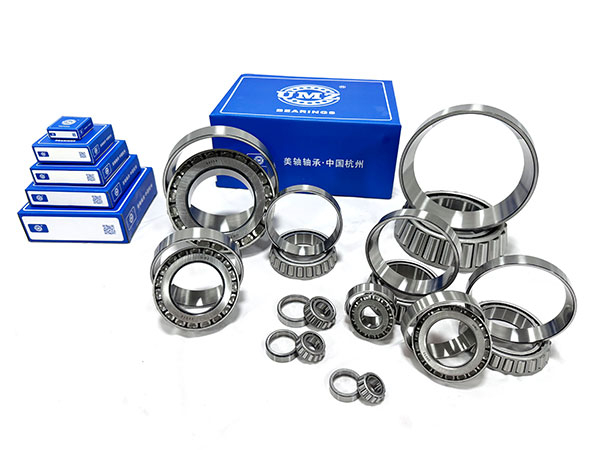

Taper Roller Bearing Metric Tapered Roller Bearing

Related Products

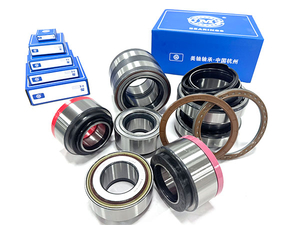

Truck Bearing

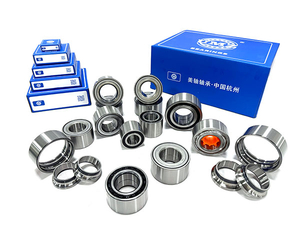

Wheel Hub Bearing

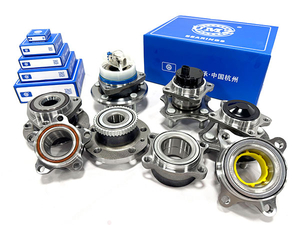

Wheel Hub Unit Bearing
