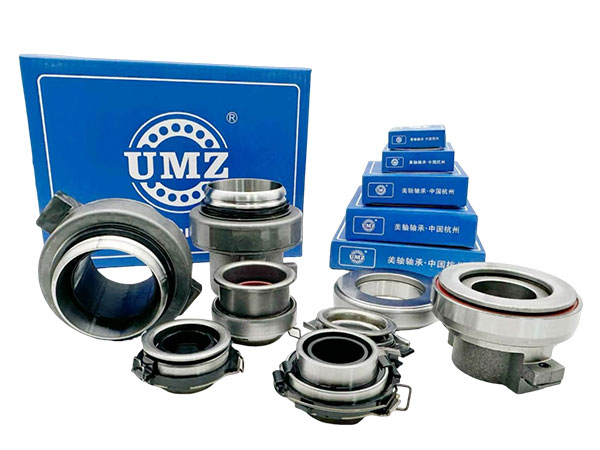

The clutch bearing is a key component in the automobile clutch system. Its main function is to connect the clutch pedal and the clutch pressure plate. When the driver operates the clutch, the axial movement of the bearing pushes the release lever to disengage or engage the clutch, thereby realizing the cutting off and transmission of power.
| Original and OE No. | Parameters (inner hole * working surface * installation height * fork height) | Original and OE No. | Parameters (inner hole * working surface * installation height * fork height) |
| RCT338SA | φ33*φ50*22*70 | 55RCT3238F0 | φ31.5*φ55*37.5*46 |
| 48RCT3301 | ①33*①48*22*50 | 48RCT3238F0 | φ32*φ48*37.5*46 |
| 48RCT3303 | φ33*φ48*23*42.5 | 50RCTY3322F0 | φ33.2*φ50*22*70.3 |
| 50RCTS2801 | φ28*φ50*22*56.3 | 54RCTS3221F0 | φ32*φ54*21.5*60 |
| 48RCT2821F0 | φ28.5*①48*21.5*45 | 47RCT3123F0/614122/PRB-61 | φ31*φ47*23*68 |
| 44RCT2802 | φ28*φ44*21.5*55 | 55RCT3123F0 | φ31*φ55*22.8*68 |
| 44RCTY2822F0A/44RCTS2822F0 | φ28*φ44*21.5*52 | 55SCRN34P-B22810-PPT-003 | φ34.5*φ55*19*72 |
| 47RCT3001 | φ30.5*φ47*19.5*45 | 55RCT3226F0/FCR55-17-11; | φ32*φ55*26.5*46 |
| CT2821F0-A/48RCT2821F0-B | φ28*φ54*21.5*45 | 58RCT3527F0 | φ35*φ60*26.5*44 |
| 48CT2822F0/48RCTY2822F0 | φ28*φ48*22*44.5 | 50RCT3534F0/50TKB3504BR/614088 | φ35*φ50*33.5*44 |
| 50RCT3304 | Φ33*φ50*21.5*70 | 50SCRN31P-14B)/31230-12170/614152 | φ33.2*φ50*22*79 |
| 50CT3221F0 | φ32*φ50平*21*46 | RCT356SA9/31230-35070/614086 | φ35.2*φ50*30*44 |
| CT3323F0 | φ33*Φ56*23*42.5 | 60TKB3502R/31230-20160/VKC3584/614084 | φ35.6*φ60*25*79.2 |
| 48RCT3222F0-A | φ32*Φ48*22*45 | 50RCT3322F0-N | φ33*φ50*22*70 |
| 986809K/3626 | φ36*Φ48-68*25.5*44 | 50RCT3527F0 | φ35*φ50*27*44.2 |
| 44RCT2823F0 | φ28*φ44*23*42.5 | 448ZC/774ZC | φ24*φ30*17*34 |
| 48TKB3302/48RCT3303 | ①33*φ48*23*42.5 | HK6208/3000340001 | φ24*φ34*21*61.6 |
| 45RCT2822F0 | φ28*φ45*22.5*70.5 | 47RCT2921F0 | φ29*φ47*21*37.5 |
| 49RCT3022F0 | ①30.5*φ49*22*45 | PRB-36/CBU543625J/614079 | φ36*φ55*25*77 |
| 44TKB2805 | Φ28*①44*22*45 | φ29 | φ29.2*φ55*18*42 |
| 50RCT3322F0 | ①33.2*φ50*22*70 | 614068DK φ36 | φ36.5*φ55*18*42 |
| 50RCT3322F0-E | φ33.2*①50*22*48.1 | 500082610/614121 | φ30*φ45*21*45 |
| 09269-28004-000 | φ28*φ50*22*56.3 | CT2822F0-A | φ28*φ50*22*56 |
| 55TKB3203 | ①32*φ55*31.5*46 | 55RCT2921F0 | φ29*55*21*37.5 |
| 54RCT3202 | φ32*φ55*31.5*46 | RCT283SA/23265-78B00/PRB-06 | φ28*φ44*22*55.5 |
| MD703270 | Φ32*φ55*31.5*46 | 614171/VKC2238/50TKA3805 | φ38.5*φ50*17*46 |
| 3000389002/012141165D | ①34*φ60*24*46 | 3151809002/50TKA3805/90251210/PRB-08 | φ38.5*φ50*17*46 |
| 614015/F-203222.5/088141165B | ①34.2*Φ52*15*70.5 | VKC2215/F-206071.6 | φ35*φ60*41.5*18 |
| F-566702.01/3151816001 | φ25.6*φ54*19.5*31 | F-231880.1/50RCT2801Z | φ28*φ50*22*56.3 |
| F-217376/618216800 | φ31.5*①54*22.2*39.8 | 22810-P6A-000/3151997001/VALE0:801265 | φ35*φ50*21.5*60 |
| F-201769/613000 | Φ35.5*18*41.5 | FCR48-24/2E;30502-4E122/30502-D3522 | φ33*φ48*22.5*69 |
| BB414210S02/41421-28010/41421-28002 | φ32.2*φ48*21*62 | TKS48-23K/30502-52A00/614047 | φ33*φ48*13*68 |
| 41421-32000 | Φ32*φ48*22*46 | 30502-AA051/VKC3717/614159 | φ34.2*φ62*25.5*68 |
| 41421-39260/41421-39265/PRB-97 | φ32.2*φ55*20*61.8 | 40RCT2827F0 | φ28.5*φ40*28*90 |
| 41421-39000 | Φ27*16*83*Φ38 | 50CTY2619F0 | 25.6*φ36-60*19.5*32 |
| 58RCT3731F0/41421-49600 | ①37.5*φ60*31*56-99.5 | NY-075 | φ*φ*φ |
| BB40414S02/41421-23010/PRB-04 | φ32*φ48*22*46 | 54TKB3401/54RCT3401 | φ34*φ54*37*44 |
| 48RCT3204F0/48RCT3221F0 | φ31.8*φ48*21*60 | 54CT3421F0-A | φ34*54*21*44.5 |
| CT3221F0-D | φ32*Φ50*21.5*60 | 54RCT3421F0 | φ34*φ54*21*44.5 |
| 44CTY2619F0 | φ25.5*①50*19*31 | 50RCT3322F0-C | φ33.2*φ50*22*79 |
| 61410758TKA3703B/PRB-50/ME600576 | φ37*φ58*31*55.5 | CT3533F0 | φ35*φ48-60*33*47.5 |
| 54RCT3521 | φ35*φ54*33*48 | 88BB7548AA | φ35*φ54*25.5*46 |
| 614154/MR145619 | φ32*φ45*41.8*95.5 | 48TKB3201 | φ32.5*φ48*38.5*40 |
| Original and OE No. | Parameters (inner hole * working surface * installation height * fork height) | Original and OE No. |
| 48CT3235F0 | φ32*φ44-50*35*46 | 50CTY3221F0 |
| 60RCT3235F0 | φ32*φ58*35.5*40 | CT2519F0 |
| 60RCT3225F0/8-97316591-0 | φ32.5*φ60*25*40 | 55RCT3534F0 |
| 60RCT3525F0/8-97316602-0 | φ35*φ60*25*52.5 | 62CT4440F2 |
| 54RCT3421F0 | φ34*φ54*21*44.5 | 48RCT3319F0 |
| 48RCT3421F0 | φ34.5*φ48*21*44 | 02T 141165B |
| 986911K | φ44*φ55-78*40*52 | PRB-25 |
| 688911K | φ44*φ55-78*40*52 | 50RCTY2822F0 |
| 62RCT3530F0/RCT3530F2-65 | φ35*φ62*32*48 | 44RCTS2822F0 |
| 62RCT3530F2 | φ35*φ62*30.5*48 | 62RCT3742F3 |
| 9686808K | φ39.8*φ54*23 | CT3323F0 |
| 54TKA3501 | φ35*54*33*48 | 44CTY2619 |
| 986809K2 | 41421-28002 | |
| 986809K2 | φ35*φ61*37*47.5 | 020141/165H |
| RCT4000SA | φ40*φ62*23.5 | 48RCT3222F0 |
| 613015/RCT40SA3/30502-30P00 | φ40*φ62*23.5 | 44TKB2805 |
| 62RCT3503 | φ35*φ62*37.5*47.5 | 48RCT3204 |
| 62RCT3533F0 | φ35*φ62*33*48 | 50RCT3322F0-C |
| 62RCT3742F3 | φ37*φ62*42*49 | 49RCT3022 |
| CT3741F2 | φ36.5*41.5*49 | 48RCT2821F0 |
| 44CL3642F0/CRB2350 | φ35.5*42*68 | 55TKB3203 |
| 54CT3338F2 | φ33.5*φ54*37.5*44 | 47RCT3123 |
| C00035028 | φ35*φ43-62*19*45/77 | 48RCT2822 |
| 62RCT3541F2 | φ35*φ62*41*48 | 48RCT3204 |
| 62RCT3331F3 | φ33*φ62*31*48 | CT3533 |
| 55RCT3533F0 | φ35*φ55*33*48 | 50SCRN31P |
| CT3227F0 | φ32*φ54*26.5*46 | 50RCT3322F0 |
| 78TKL4801AR | φ48*φ60-81*32*61 | 50RCTS2801 |
| 70CT4845F0/78TKL4001AR | φ48*φ60-81*45*61 | 48RCT3301 |
| 54RCT3437F0 | φ34.5*φ54*37*44.5 | 44RCT2802 |
| 55CT3741F3 | φ36.5*41.5*49 | 50RCT3534F0 |
| PRB-03 | φ32.2*φ48*34*46 | RCT338SA |
| 54RCT3538F2 | φ35*φ54*38*48 | 48RCT3303 |
| PRB-12 MB100 | φ34.5*Φ45-62*24.5*38 | 3322-E |
| CBU472921 | ||
| UO113 | ||
| F-589844 | ||
| CT3431F0 | ||
| CT3221F0-B | ||
| 50RCT3305F0-A | ||
| 60RCT3421 | ||
| 44CTY3322F0 | ||
| 58RCTY3221F0 |
